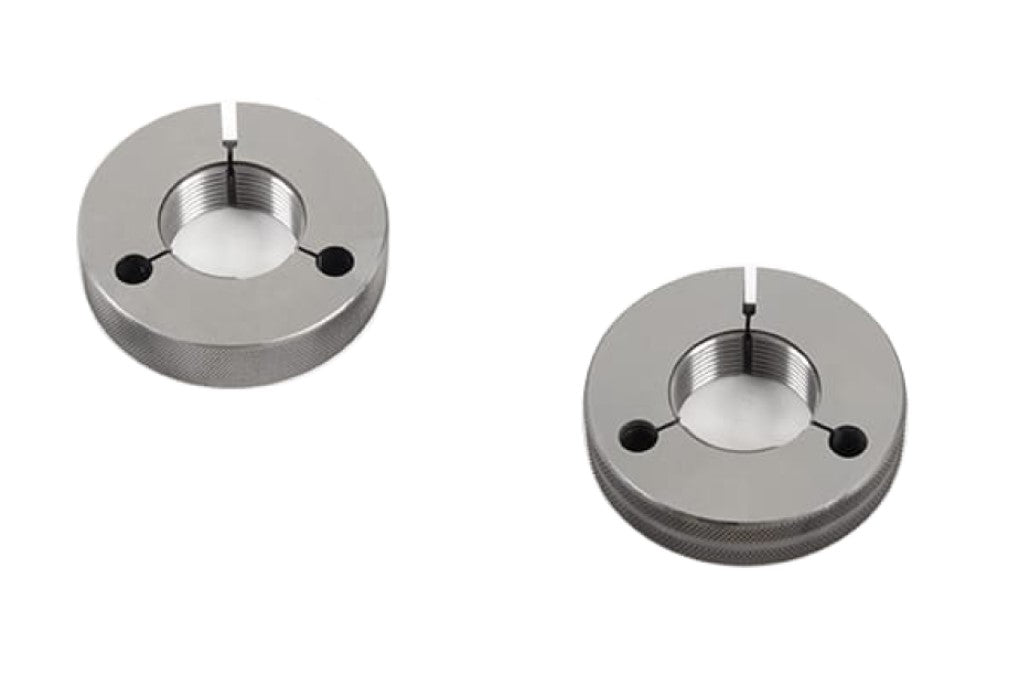

Vermont Metric Thread Ring Gage Set, GO/NOGO, M22.0x2.50 6g

Vermont Metric Thread Ring Gage Set, GO/NOGO

Vermont’s Thread Gages allow you to inspect the pitch diameter for threaded products.

All stock Thread Ring Gages are made to Class X tolerances per ASME B1.16M (Metric Series Screw Threads).

A Certificate of Accuracy is included with each gage.

Each Metric Thread Ring Gage is marked with nominal size, class of fit and pitch diameters.

Features include…

• M22.0x2.50 6g Threads
• GO and NO GO Set
• Certificate of Accuracy included
• Made from Tool Steel, 60/62 Rc.

Specifications include…

• GO Gage Length: 23.8mm
• NO GO Gage Length: 17.5mm
• GO Pitch Diameter: 20.334mm
• NO GO Pitch Diameter: 20.164mm
