Sale!

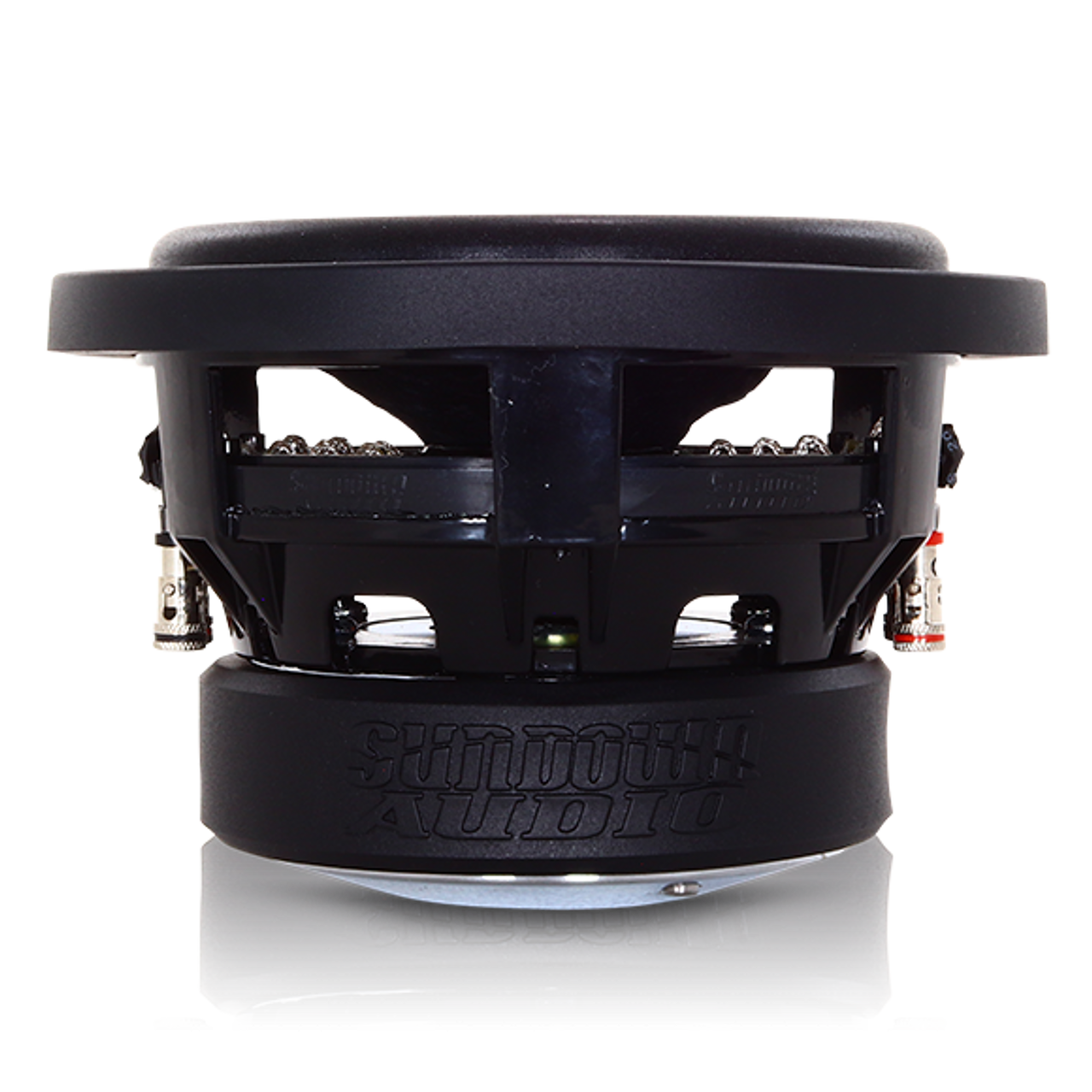

Sundown Audio SA-6.5 v.2 DVC Subwoofer 200w RMS

Original price was: $111.99.Current price is: $28.00.

SKU: US-8884908720383 Categories: , Tags: , , , ,

Description

Sundown Audio SA-6.5 v.2 DVC Subwoofer 200w RMS

Product Description

SA-6.5SW

  • RMS Power: 200-watts
  • Coil: 1.5″ Diameter Copper Windings w/ Black Aluminum Former
  • X-Max: 10mm one-way by 70% BL
  • Magnet ID Faraday Ring
  • Solid Pole w/ Vent Channels

SA 6.5″

T/S SPECS SA 6.5 D2 SA 6.5 D4
RE (Ohms) 4.0 7.1
FS (Hz) 48.9 51.8
VAS (L) 4.1 3.6
Qes 0.50 0.54
Qms 4.82 4.65
Qts 0.46 0.49
Le (mH) 1.69 2.45
BL (NA) 13.5 17.9
Mms (Grams) 74.8 75.6
Cms (uM/N) 0.14 0.12
Sens (dB @ 1w/1m) 81.6 81.5

SA 6.5″

Sealed Enclosure 0.15 cu ft
Ported Enclosure 0.3 cu ft
Recommended Tuning 40Hz
Recommended Port Area 4 sq in
Displacement
Depth 3.79″
Outside Diameter 7.16″
Cut-Out 5.93″
Physical Dimensions Download





Additional information

COIL CONFIGURATION

2 OHM, 4 OHM
