Sale!

Mitutoyo Snap Gage w Mitutoyo Digital Indicator .00002″ Res

Original price was: $960.45.Current price is: $192.09.

SKU: US-6638171947189 Categories: , Tag:

Description

Mitutoyo Snap Gage w Mitutoyo Digital Indicator .00002″ Res

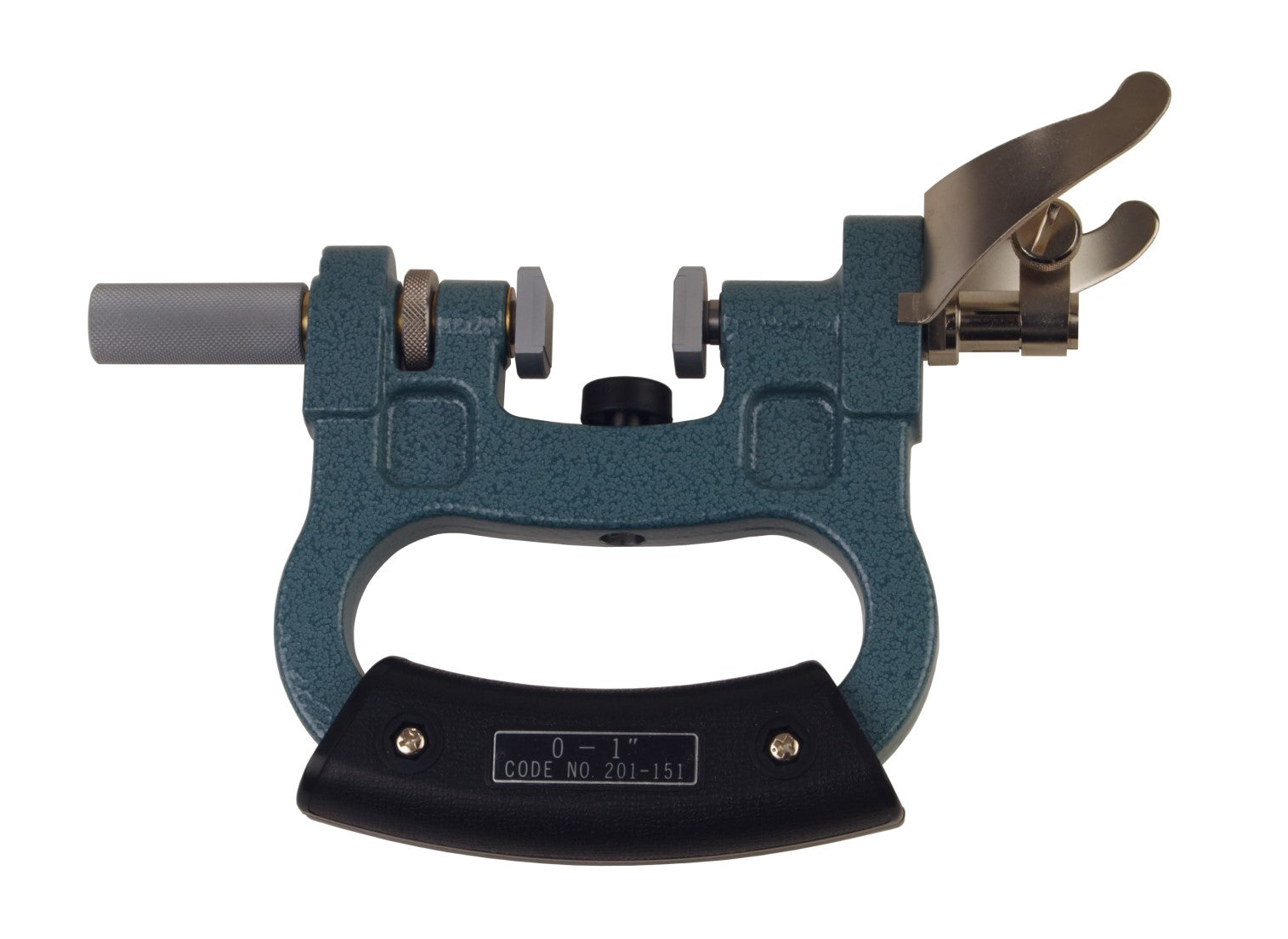

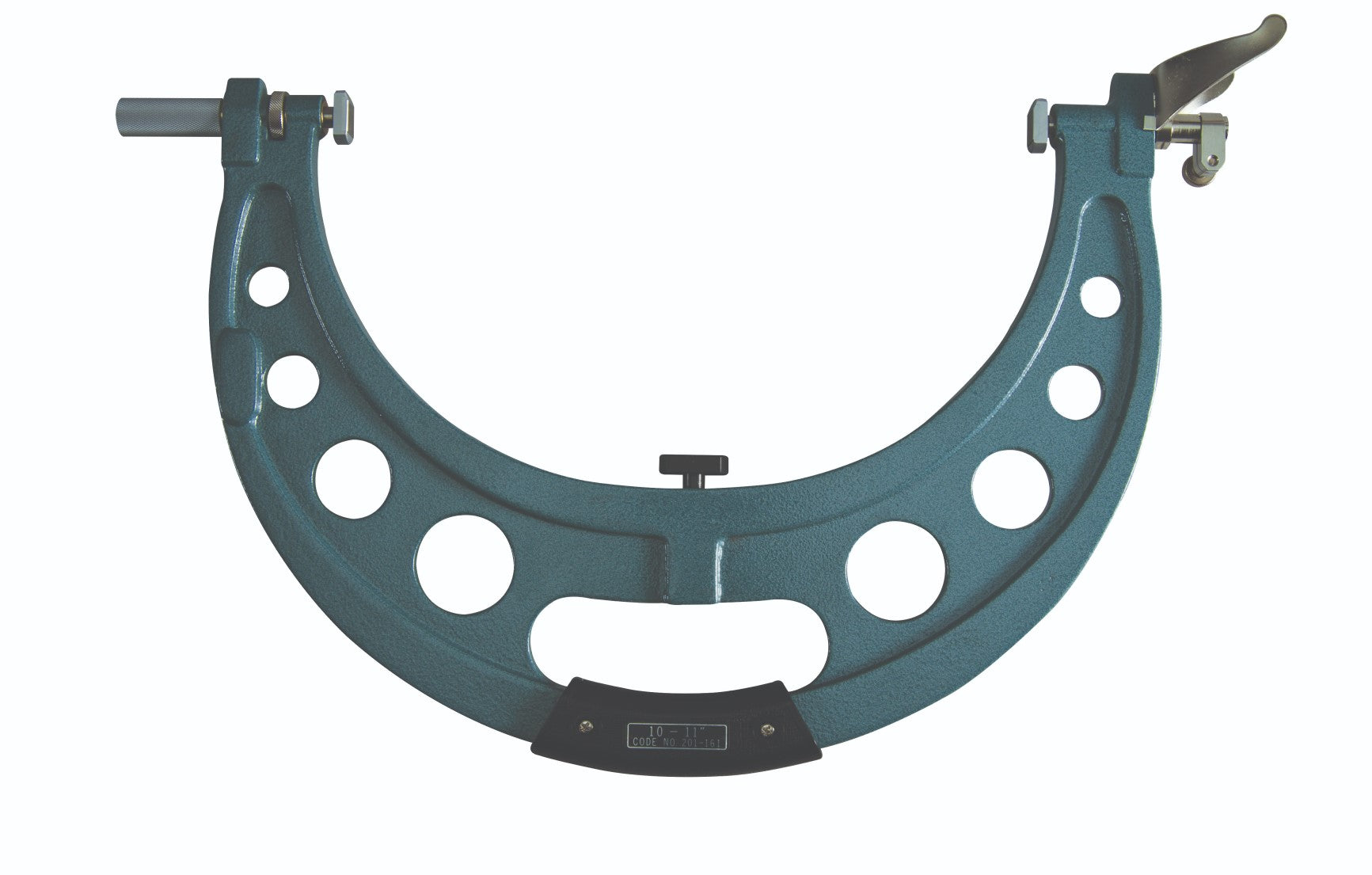

Mitutoyo Indicating Snap Gage

Mitutoyo’s 201-Series Indicating Snap Gages are light weight and easy to use. These easily adjusted gages offer precise, repeatable measurements. They are 24/7 shop-rugged and ready for use out on the factory floor.

Features include…

  • Contact Travel: 0.078″
  • Adjustable Anvils for accurate Measurements
  • + 0.000050″ Repeatability
  • 0.53″ x 0.47″ Flat Carbide Anvils
  • 0.00004″ Anvil Flatness
  • Both front edge of anvils are chamfered for easy insertion.
  • 15N+3N Measuring Force

Includes Mitutoyo Digital Indicator # 543-702B…

  • 0-0.5″ / 12.7mm Measuring Range
  • Selectable Resolutions…
    • 0.00002″ / 0.00005″ / 0.0001″ / 0.0005″
    • 0.0005mm / 0.001mm / 0.01mm
  • +0.00012″ / 0.0003mm Accuracy
  • SPC Output
  • Face Rotates 330°

Select Size from pull down menu before adding to cart.

Additional information

Measuring Sizes

0-1" (201-151-702B), 1-2" (201-152-702B), 2-3" (201-153-702B), 3-4" (201-154-702B), 4-5" (201-155-702B), 5-6" (201-156-702B), 6-7" (201-157-702B), 7-8" (201-158-702B), 8-9" (201-159-702B), 9-10" (201-160-702B), 10-11" (201-161-702B), 11-12" (201-162-702B)
