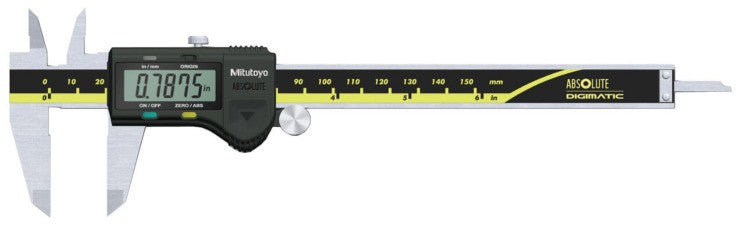

Mitutoyo 500-195-20, 0-4 inch, Digimatic Caliper without SPC Output
Mitutoyo 0-4″ Digital Caliper
Specifications include…
0-4″ / 100mm Measuring Range
0.0005″ / 0.01mm Resolution
0.0005″ / 0.01mm Repeatability
+ 0.001″ Accuracy
0.075″ Round Depth Bar
Features include….
Large and clear LCD readout.
The ZERO/ABS key allows the display to be Zero-Set at any slider position along the scale for incremental comparison measurements.
This switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point (usually jaws-closed point).
With thumb roller.
Supplied in fitted plastic case.
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Battery life: Approx. 3.5 years under normal use
Function Origin-set,
Zero-setting,
Data output, inch/mm conversion
Alarm: Low voltage, Counting value composition error.
