GP 6″ DIY Stack Fab Octa-port

Original price was: $64.99.Current price is: $19.50.

Description

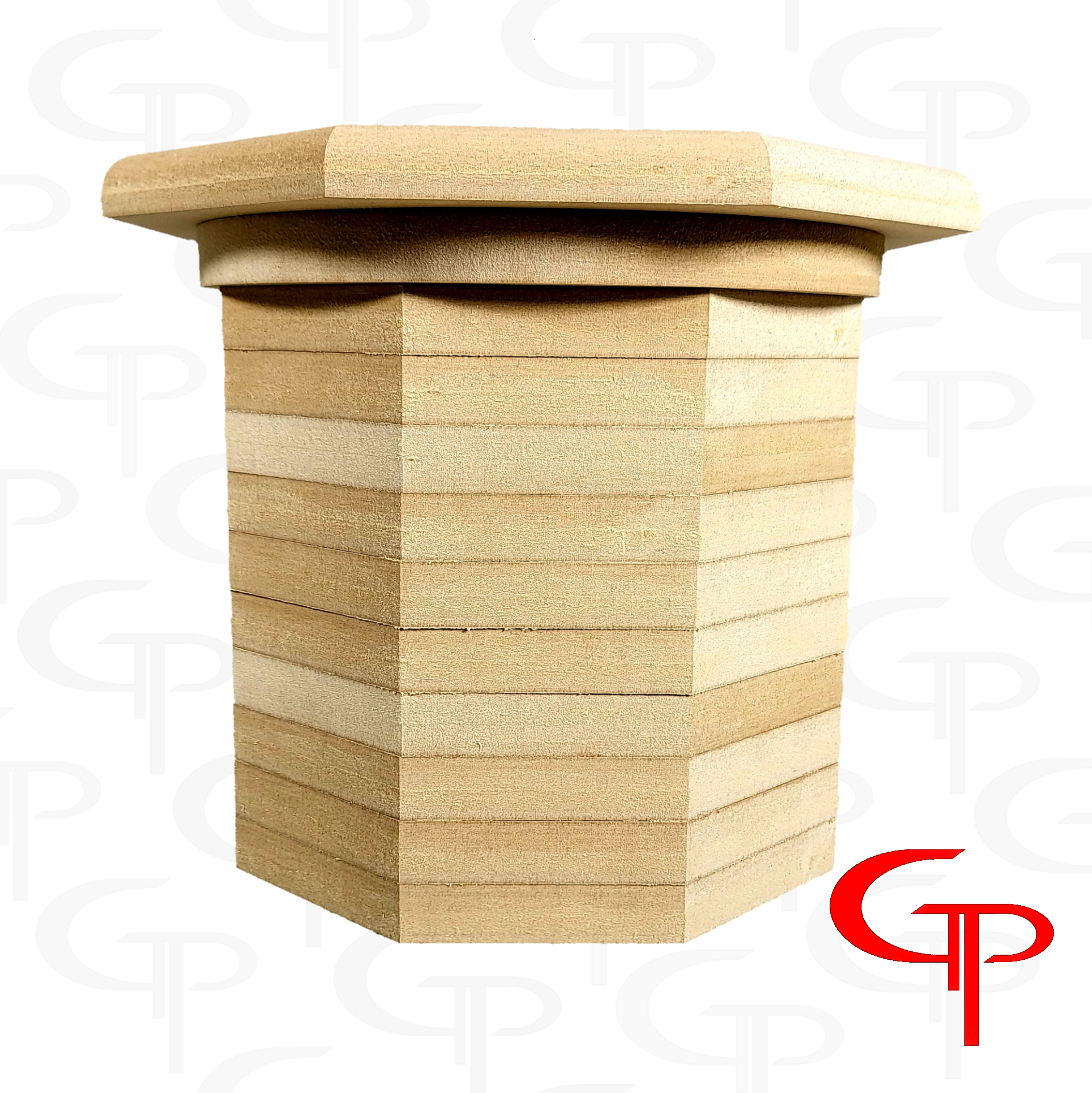

GP 6″ DIY Stack Fab Octa-port

Product Description

The GP 6″ DIY Stack Fab Octa-port includes the following:

-1x Rounded over external flange (mounting face). Outside dimensions: 10.5″ Octagon shape

-1x 9″ round baffle insert. If you have more than a single baffle be sure to select the number of baffles accordingly, each additional baffle will add 0.75″.

-10x 0.75″ Octagon stack fab pieces.

Tech Specs:

Square inches of port: 29.82″

Total length as is without additional baffles, or additional stack fab layers added: 9.00″

External Flange: 10.5″

Mounting hole diameter for baffle insert: 9.00″ (To mount, cut 9.00″ hole in enclosure)

Total port wall thickness: 1.00″

Displacement without additional pieces: 0.23 Cubic Feet

Displacement per 0.75″ thick stack fab piece (does not include flange and baffle inserts) 0.023 Cubic Feet

Example: If you add on an additional 10 more stack fab pieces it will add another 0.23 cubic feet

Assembly: Standard use of wood glue and clamps. Tip: A brad nailer will make assembly very quick.
