Description

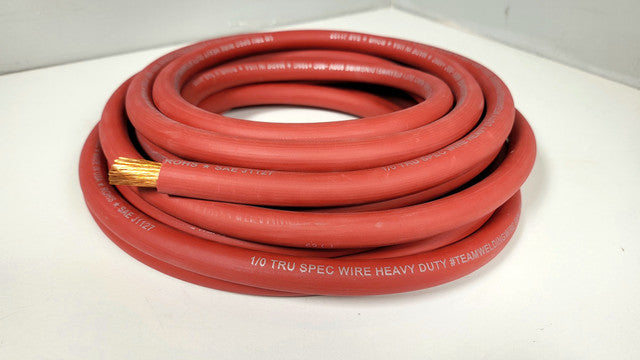

Bulk 1/0 AWG Tru Spec #TeamWeldingWire Copper Wire Red

Product Description

Bulk Increments

Tru Spec’s 1/0 AWG USA made copper welding wire.

Conductors

• Rope-lay, bunch-stranded 30 AWG SAE copper conductor
• Strand Count: 975 (30 GA Strands)

Insulation & Jacket

• Wrapped paper separator
• Jacketed with proprietary low-smoke, halogen-free EPDM compound
• Resistant to abrasion, battery acid, diesel fuel, engine coolant, engine oil, ethanol, extreme temperatures, flame, gasoline, power-steering fluid, transmission fluid
• Insulation thickness: .080″ (2.03m)
• Overall outside diameter thickness: 0.533″ (13.54mm)

Temperature Range

• -50C (-50F) to 105C (221F)

Industry Approvals

UL 2556
Meets battery cable requirements per:
UL 558 and UL 583
UL 4127 (60 V DC; 25 V AC)
SAE J1127 Compliant
REACH, RoHS, CMRT, and Prop 65 Compliant
