54-192-340 Fowler – Trimos V3 Electronic Height Gage 16″

The NEW Fowler-Trimos V3 vertical measuring instruments have been developed for the most difficult workshop environments. Manufactured in their entirety in Switzerland, they guarantee a robust, precise and reliable product in the long run.

Technical Data…

• Measuring Range: 16″ / 407mm
• Range with Probe Inverted: 20″ / 508mm
• Max. Permissible Errors: 0.00032″ / 0.008mm
• Repeatability (2s): 0.00008″ / 0.002mm (Ì÷ 0.00016″ / 0.004mm)
• Frontal Squareness Deviation: 0.0004″ / 0.010mm
• Resolution: 0.00005″ / 0.001mm
• Measuring Force (N): 0.75 / 1.5
• Measuring Insert with 4mm Ruby Ball
• 8mm Probe Holder Elbow
• Battery Life (Hrs): 40
• Interfaces: USB / RS232
• Air Cushion: NO

Features include…

• Extremely easy to use
• “Black mask” display with user friendly functions
• Electronically adjustable measuring force
• Vast range of accessories
• All adjustments possible without tools
• Cast iron base for optimal stability

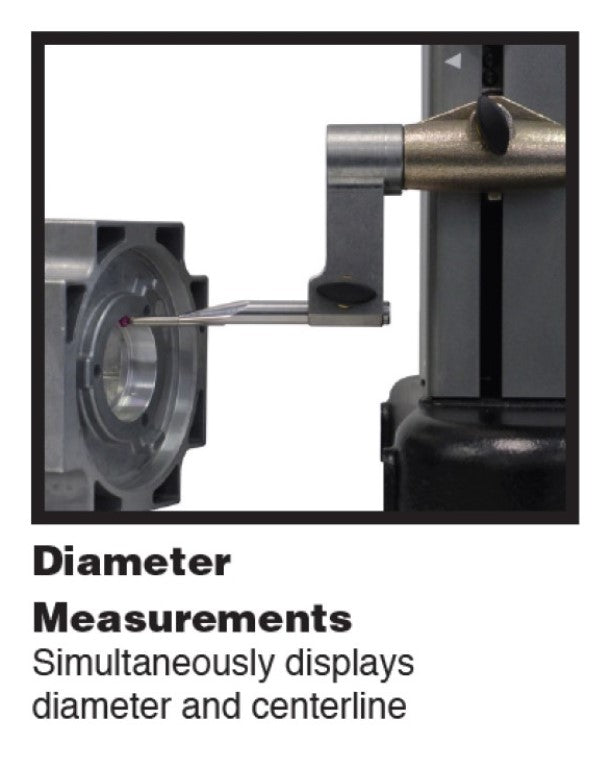

• Measures heights, diameters, perpendicularity, centerlines, Min/Max/Delta
• Accessory measuring probes up to 340mm in length available and provide excellent repeatability.
