54-191-440-0 Fowler – Trimos V4 Electronic Height Gage 16″ Supply

Original price was: $6,584.83.Current price is: $430.92.

SKU: US-1151906371 Categories: , Tags: ,

Description

54-191-440-0 Fowler – Trimos V4 Electronic Height Gage 16″

The NEW Fowler-Trimos V4 vertical measuring instruments have been developed for the most difficult workshop environments. Manufactured in their entirety in Switzerland, they guarantee a robust, precise and reliable product in the long run.

Technical Data…

  • Measuring Range: 16″ / 407mm
  • Range with Probe Inverted: 28.3″ / 719mm
  • Max. Permissible Errors: 0.0002″ / 0.005mm
  • Repeatability (2s): 0.00008″ / 0.002mm (Ì÷ 0.00016″ / 0.004mm)
  • Frontal Squareness Deviation: 0.0004″ / 0.010mm
  • Resolution: 0.00005″ / 0.001mm
  • Measuring Force (N): 0.75 / 1.5
  • Measuring Insert with 4mm Ruby Ball
  • 8mm Probe Holder Elbow
  • Battery Life (Hrs): 40
  • Interfaces: USB / RS232
  • Air Cushion: YES

Features include…

  • Extremely easy to use
  • “Black mask” display with user friendly functions
  • Electronically adjustable measuring force
  • Vast range of accessories
  • All adjustments possible without tools
  • Cast iron base for optimal stability

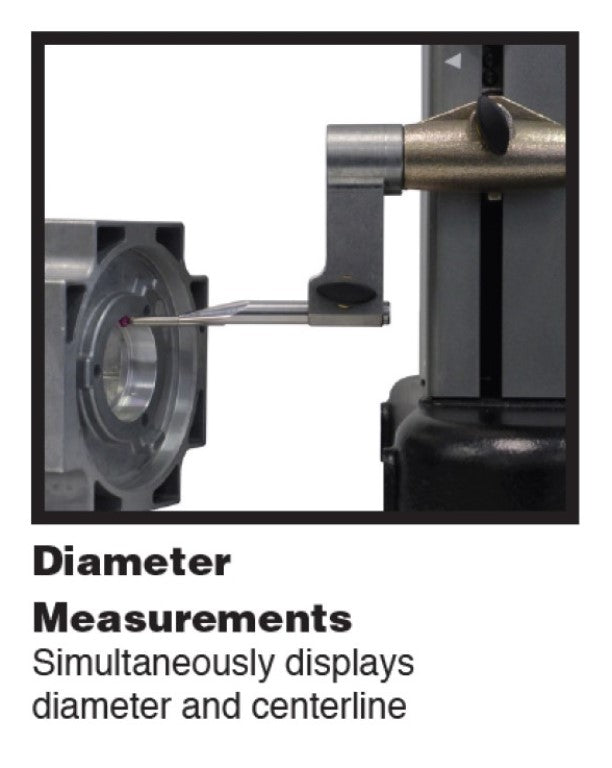

  • Measures heights, diameters, perpendicularity, centerlines, Min/Max/Delta
  • Accessory measuring probes up to 340mm in length available and provide excellent repeatability.



Check Out Our Informational Video About Fowler Trimos Below:
