Sale!

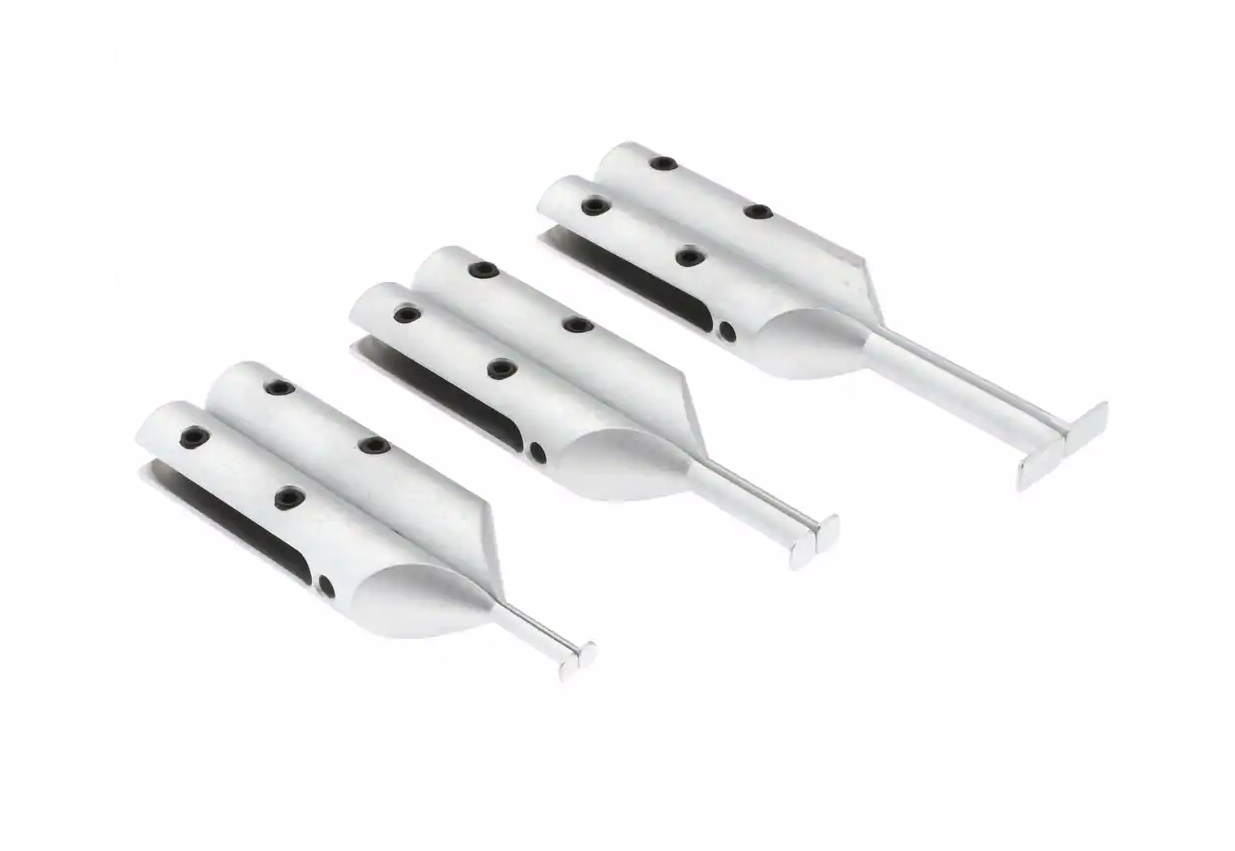

30-463-4 Groovemaster Set
Original price was: $200.92.$50.23Current price is: $50.23.
Description
30-463-4 Groovemaster Set
For quick and accurate measurements of internal and external diameters of retaining ring grooves, o-ring grooves, and undercuts.
Precision machined from steel, hard chrome plated for extra wear resistance.
Fits all 6″ vernier, dial and digital calipers with a maximum jaw thickness of 0.140″.
Measures internal grooves from 0.200″ up to the capacity of the caliper.
Complete Set includes the following…
- Groovemaster Size 1
- Groovemaster Size 2
- Groovemaster Size 3
| Size | Min Bore A | Width B | Max Depth C | Groove Depth D |
| 1 | 0.200″ | 0.015″ | 0.400″ | 0.050″ |
| 2 | 0.300″ | 0.015″ | 0.625″ | 0.070″ |
| 3 | 0.600″ | 0.025″ | 1.000″ | 0.200″ |
