Description

17-624-8 Electronic Internal Micrometer .800″ – 1.00″ w/Cert

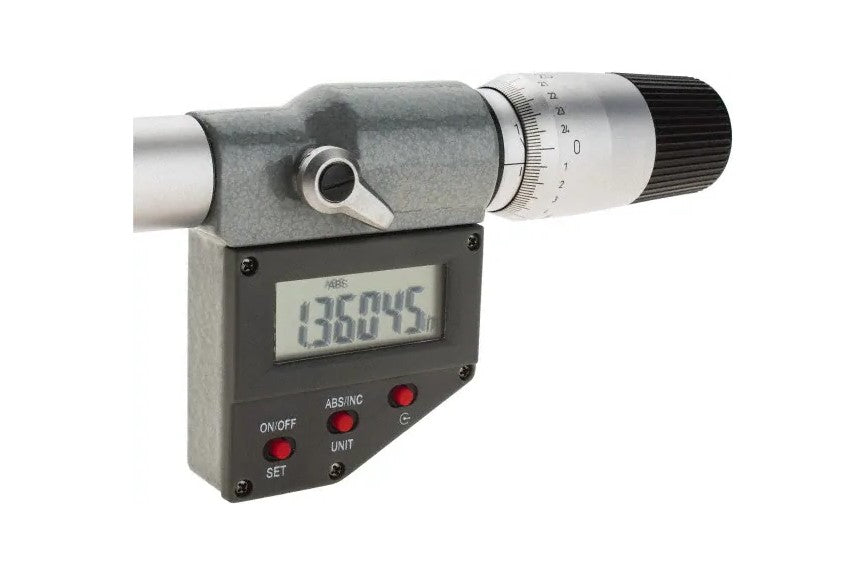

SPI Electronic Internal 3-Point Micrometer

Specifications include…

• 0.800″ – 1.000″ Measuring Range
• 0.00005″ / 0.001mm Resolution
• 0.00016″ Accuracy
• 4.125″ Measuring Depth
• 0.020″ Distance from Bottom of Bore
• 6.00″ Extension Rod Included

Features include…

• Self Centering 3 contacts points for accurate measurement of internal diameters.
• Measurement can be taken close to the bottom of a blind bore, can also be taken in a deep bore with extension rod.
• Inc./abs./inch/metric measuring
• Carbide tipped contact points.

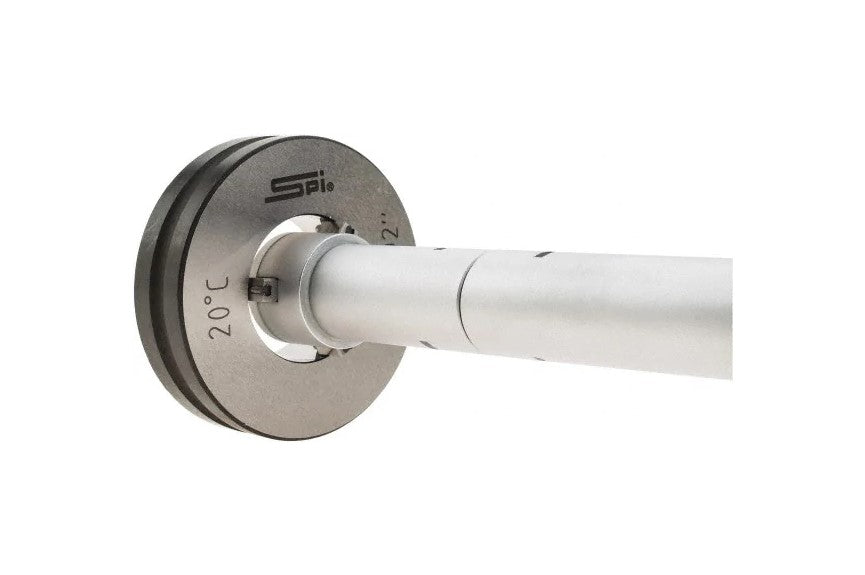

• Supplied with setting ring and extension rod
• Protection level IP54
• Ratchet thimble
• Certificate of calibration
• Furnished in fitted aluminum attache.
