Description

17-559-6 SPI Dial Bore Gage 10″ – 16″, .0005″ Grad

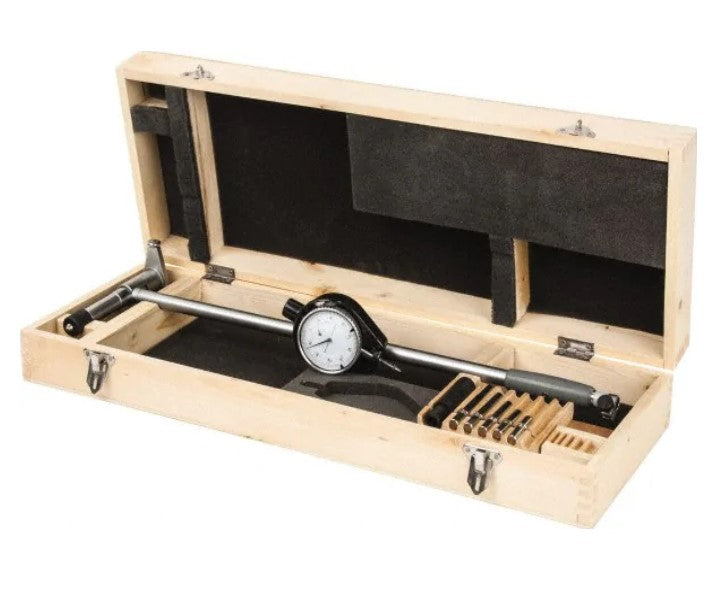

SPI Dial Bore Gage Set

These Dial Bore Gage Sets allow for close tolerance inspection of bores for size, ovality, roundness, and taper.

Specifications include…

• 10″ – 16″ Measuring Range
• 0.0005″ Graduations
• 10″ Depth Reach
• 5 Anvils

Features include…

• AGD group 2 dial indicator is fully protected by rugged cover to minimize potential shock in the
  machine shop environment.
• Various anvil sizes are provided in each set to achieve desired measurement range. Spacers also included for fine adjustment.
• 2 point measurement with precision wheel guide for self-centering.
• Precise range setting with plain ring gage or micrometer.
• Indicator accuracy meets or exceeds federal standards.
• Furnished in fitted case
