Description

13-982-4 SPI Electronic Bore Gage 0.7″ – 1.5″

SPI Electronic Bore Gage

2 Point Measurement System with precision wheel guides for self-centering.

Specifications include…

• 0.7″ – 1.5″ Measuring Range
• 0.00005″ / 0.001mm Resolution
• 5″ Probe Depth
• 8 Anvils

Features include…

• Close tolerance inspection of bores for size, roundness, ovality, and taper.

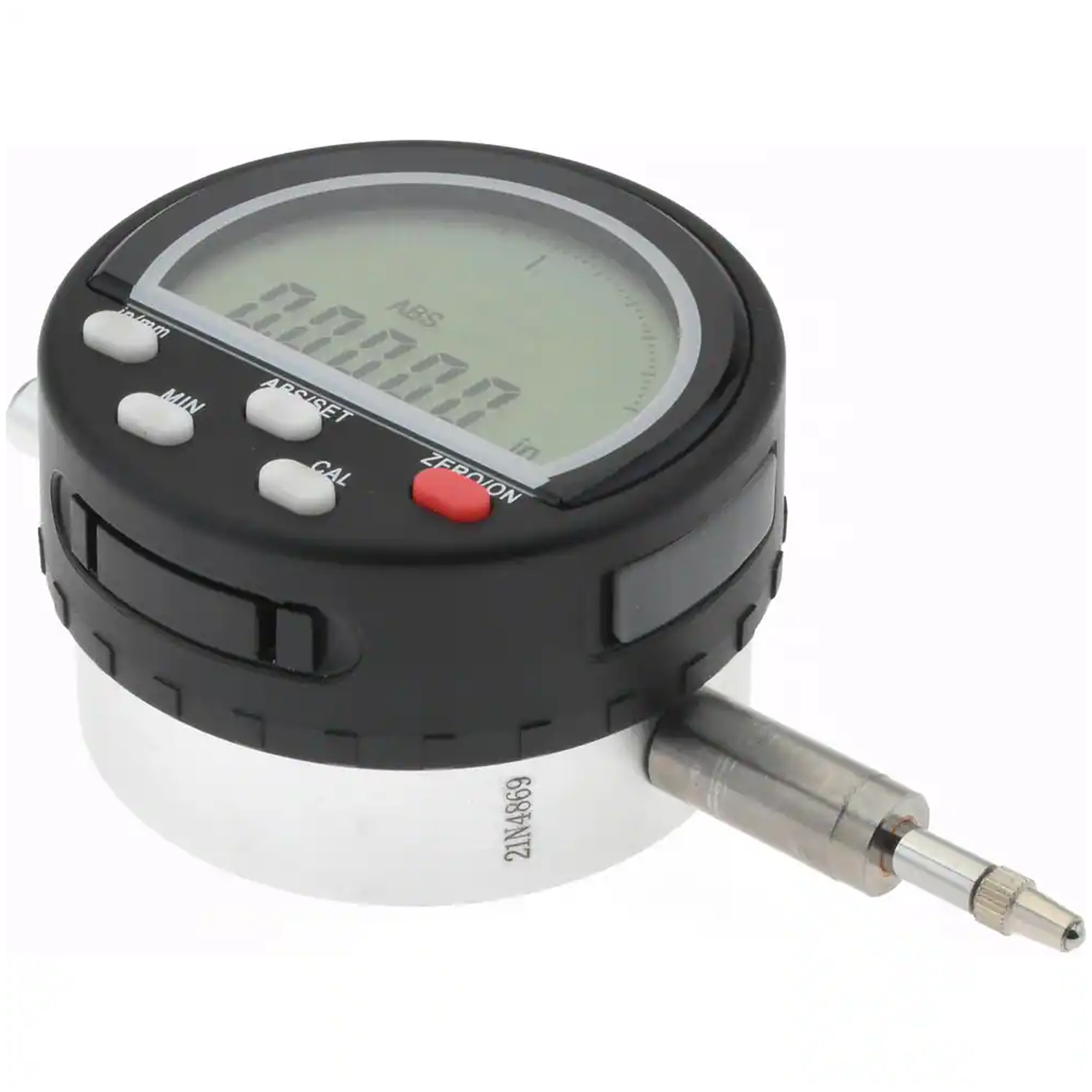

• Electronic indicator is fully protected by rugged cover to minimize potential shock in the machine shop environment.
• 2 point measurement with precision wheel guides for self centering.

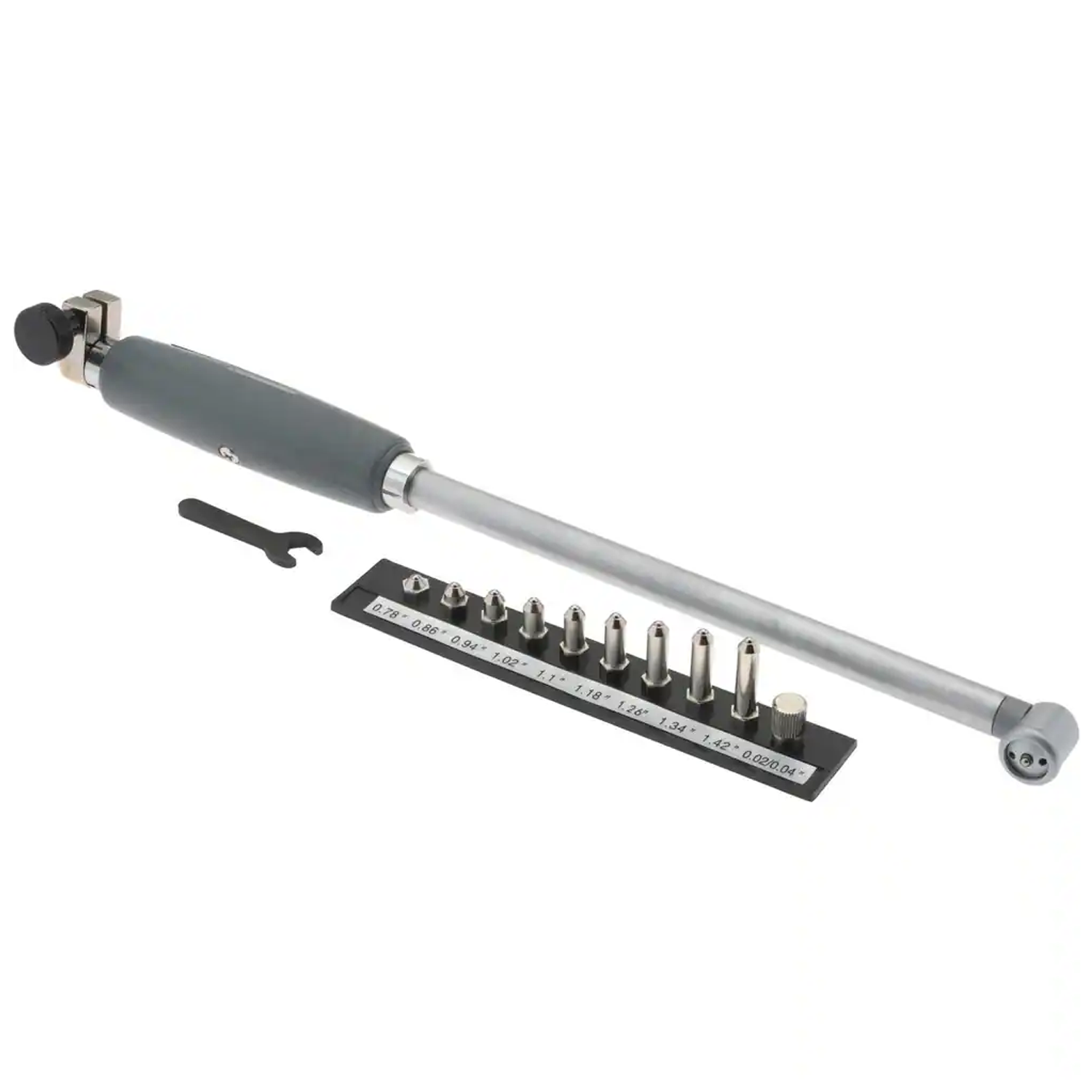

• Various anvil sizes are provided in each set to achieve desired measurement range. Spacers also included for fine adjustments.
• Zero setting with plain ring gage or micrometer.
• Inc./abs/inch/metric measuring.
• Auto shut off.

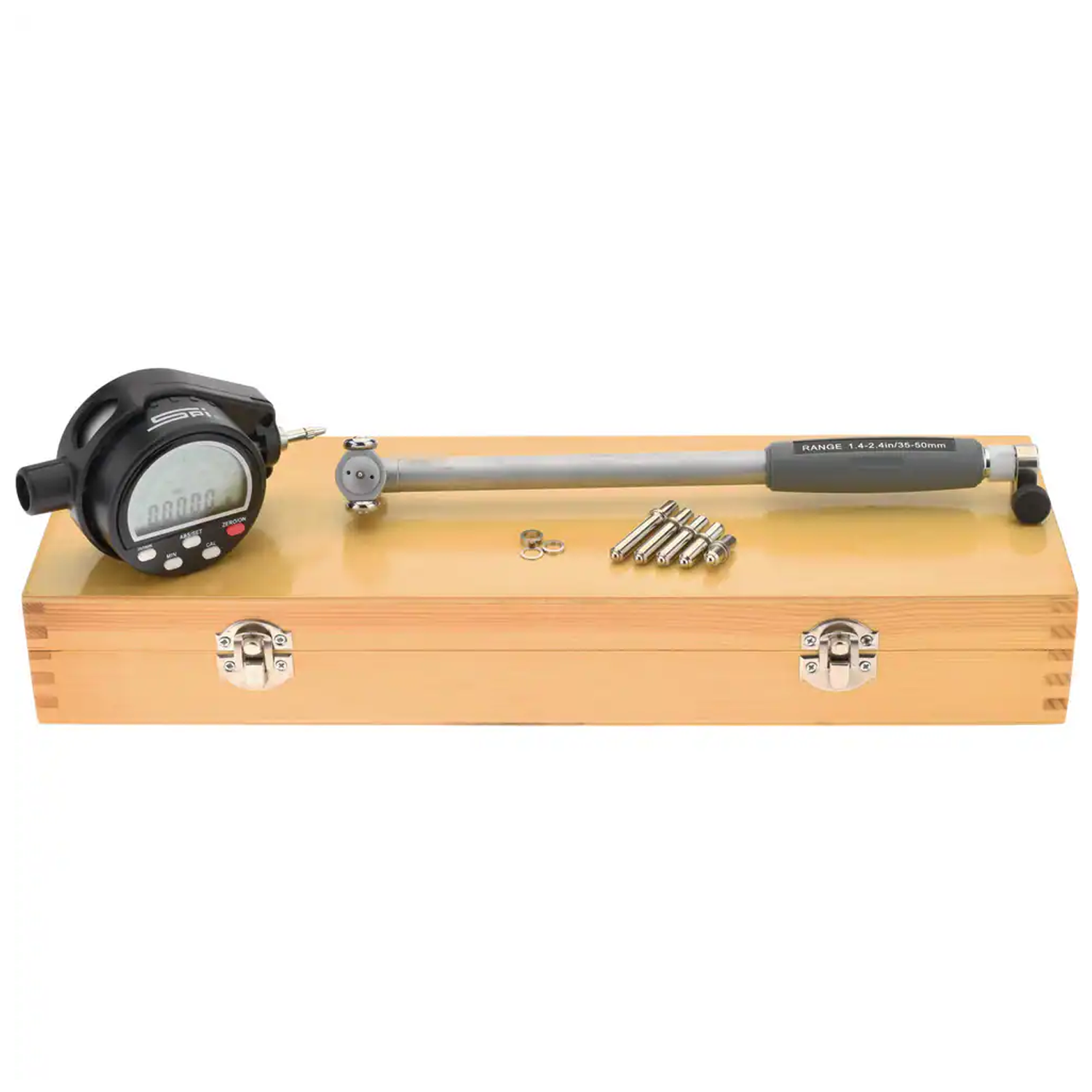

• Furnished in fitted case
