13-978-2 SPI Coaxial Centering Indicator

SPI’s Coaxial Centering Indicator

Provides a simplified method of centering a workpiece or fixture on horizontal or vertical machines, internal or external diameters. Face of indicator remains stationary in any desired position while the machine spindle rotates, leaving the operator with both hands free to accurately position the machine table.

Features include…

• Length: 5.5″
• Shank Dia: 3/8″
• Feeler Dia: 1/8″
• Locating Accuracy within 0.0002″ of true center.
• Operating speed not to exceed 800 RPM.
• Capacity: 5/32″ – 12″ Internal; Up to 12″ external
• Graduations: 0.0005″

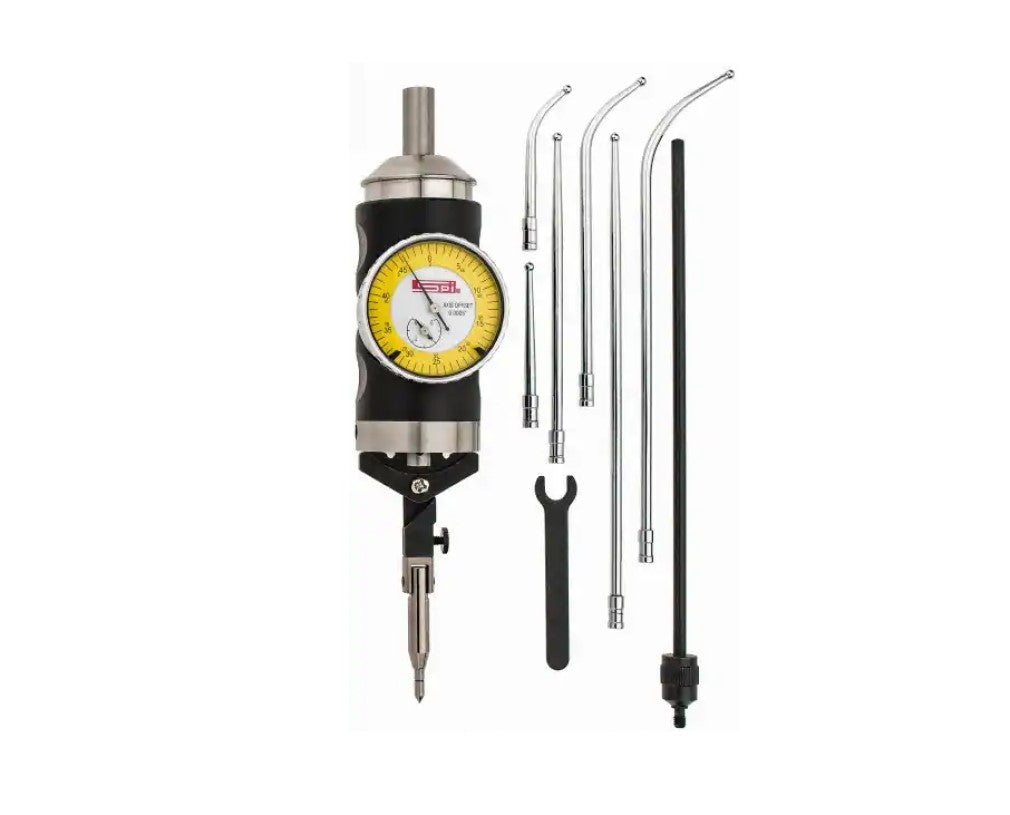

Kit includes each of the following…

• Indicator
• 3 Internal Feelers
• 3 External Feelers
• Center Locating Feeler
• Fitted Box

NOW IN STOCK
