Description

1148-300E INSIZE Electronic Depth Gage 12″ with Round Depth Bar

INSIZE Electronic Depth Gage w/ Round Depth Bar

Features include…

• 0-12″ / 300mm Measuring Range
• 0.0005″ / 0.01mm Resolution
• 3.976″ Base
• Stainless steel
• Buttons: power on/off, inch/mm, Preset (+,-)
• Battery CR2032
• Data output
• Supplied in fitted storage case

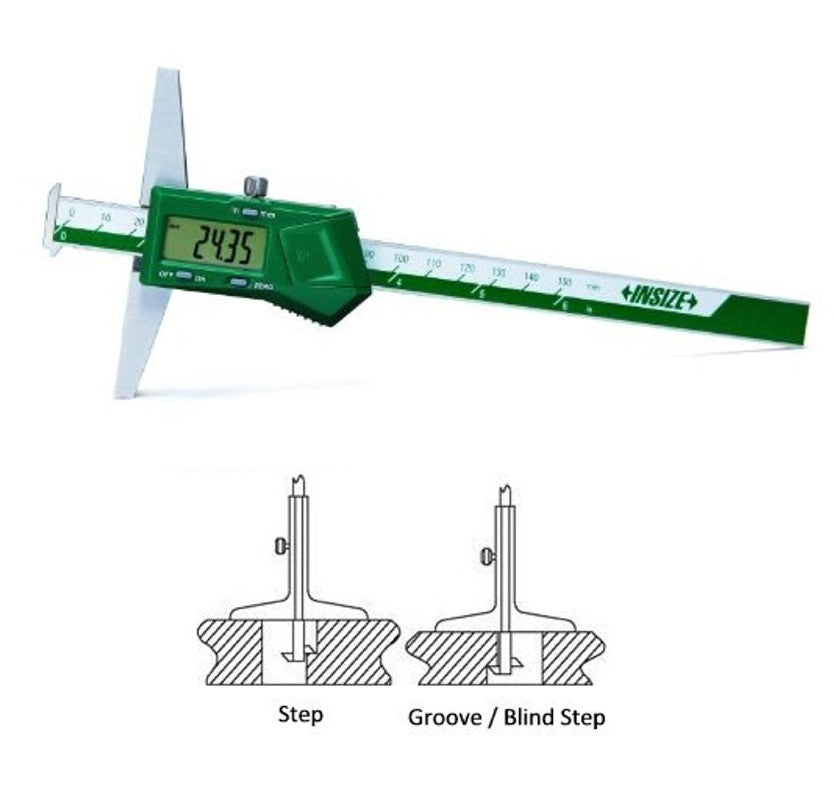

Allows you to do the following depth measurements…

• Depth Measurements of Small Holes ( >.157″)
• Measure Depth of Grooves Inside Bore
• Measure Width of Grooves Inside Bore

Includes 3 interchangeable contact points – Flat, Spherical, Disk

Includes Mounting Holes for Optional Extension Bases…

• 7.087″ Long Base # 6141-180
• 10.236″ Long Base # 6141-260
• 12.598″ Long Base # 6141-320
